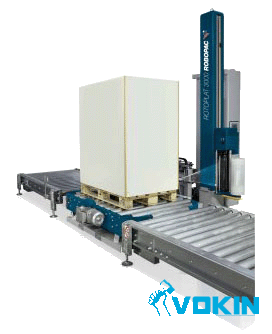

ROTOPLAT 3000 PGS ROBOPAC 转盘式缠绕机


    Rotoplat 3000是一种高性能的在线缠绕包装机器。 设计所用的材料和程序充分考虑了国内的需要,这一在线包装机是根据highests的质量和安全标准。
    薄膜切断和夹持装置、薄膜尾部抚平系统组成了一个完整的自动包装周期。

Rotoplat 3000 is a high-performance wrapping station with great added value. The design, materials and dedicated software applied to developing this in-line wrapping machine are based on the highests standards of quality and safety. The ball-bearing support, the gearmotor drive, the high-capacity rollers and the closed tube frame contribute to make a robust and reliable wrapping machine. The film cutting and clamping unit and the tail wipe system provide a fully automatic wrapping cycle and adherence of the film to the load .



  ● 转台缓起缓停定点驻止
● 自动薄膜夹持、切膜抚平系统
● 自动光电测高系统
● 自动光电测中心并准确定位系统
● 顶部与底部缠绕包装圈数可设定
● 标准的拉伸膜预延伸系统
● 当故障时,显示故障点及相关内容,ESA 标准
● 薄膜断裂与用完警示
● 意大利ROBOPAC原装进口




ROTOPLAT 3000 PFS - 全自动转盘缠绕包装机
ROTOPLAT3000 PFS-Automatic turntable with clamp-cut and sealing unit

膜架Carriage

PFS: 预延伸比例0%-250%
Variable Power pre-stretch with force to load electronic control

设备参数 Machine Characteristics

辊筒宽度Conveyor usable width: 1100 mm
转台速度Turntable rotation speed: 4-15 rpm
电源Power supply voltage : 400 Volt 3 Ph + N- 50/60 Hz
功率Installed power: 3.8 kW
转台高度Conveyor height from the ground: 400 mm

包装物件的极限范围 Characteristics of the product to be wrapped

最大的物件规格 ( 长 x 宽 ):
Maximum dimensions

1000 x 1200 mm

最大的包装高度Maximum useful height:  2200 mm

最大的包装高度Maximum load weight :

2000kg

拉伸膜的规格 Caratteristiche bobina film

拉伸膜外径(D) Max.external diameter :

300 mm

拉伸膜宽度 (h) Film spool height :

500 mm (optional 750 mm)

拉伸膜厚度 Film thickness :

17-35 μm

拉伸膜内芯直径(d) Internal diameter :

76 mm

拉伸膜重量 Max. weight :

≤ 20 kg
